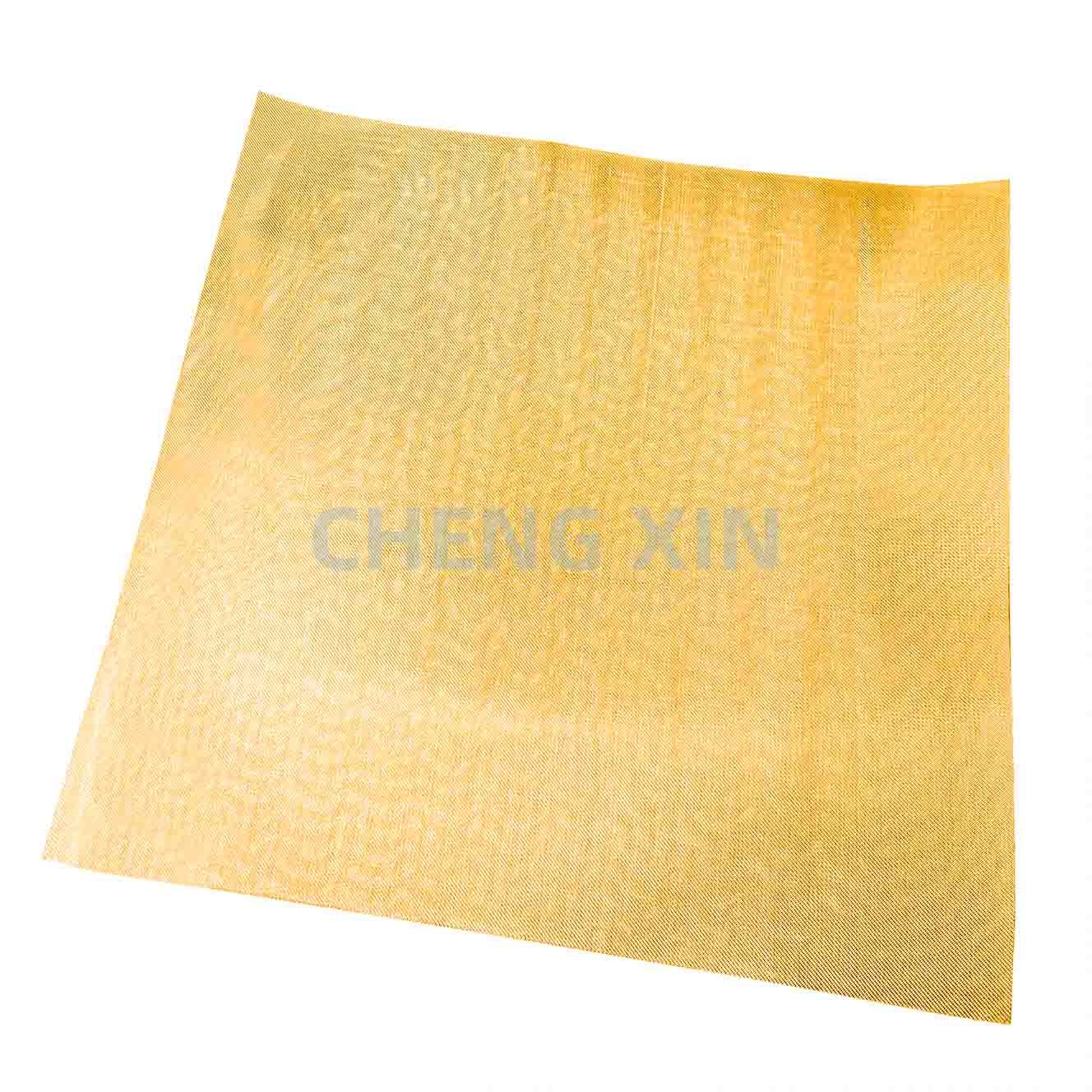

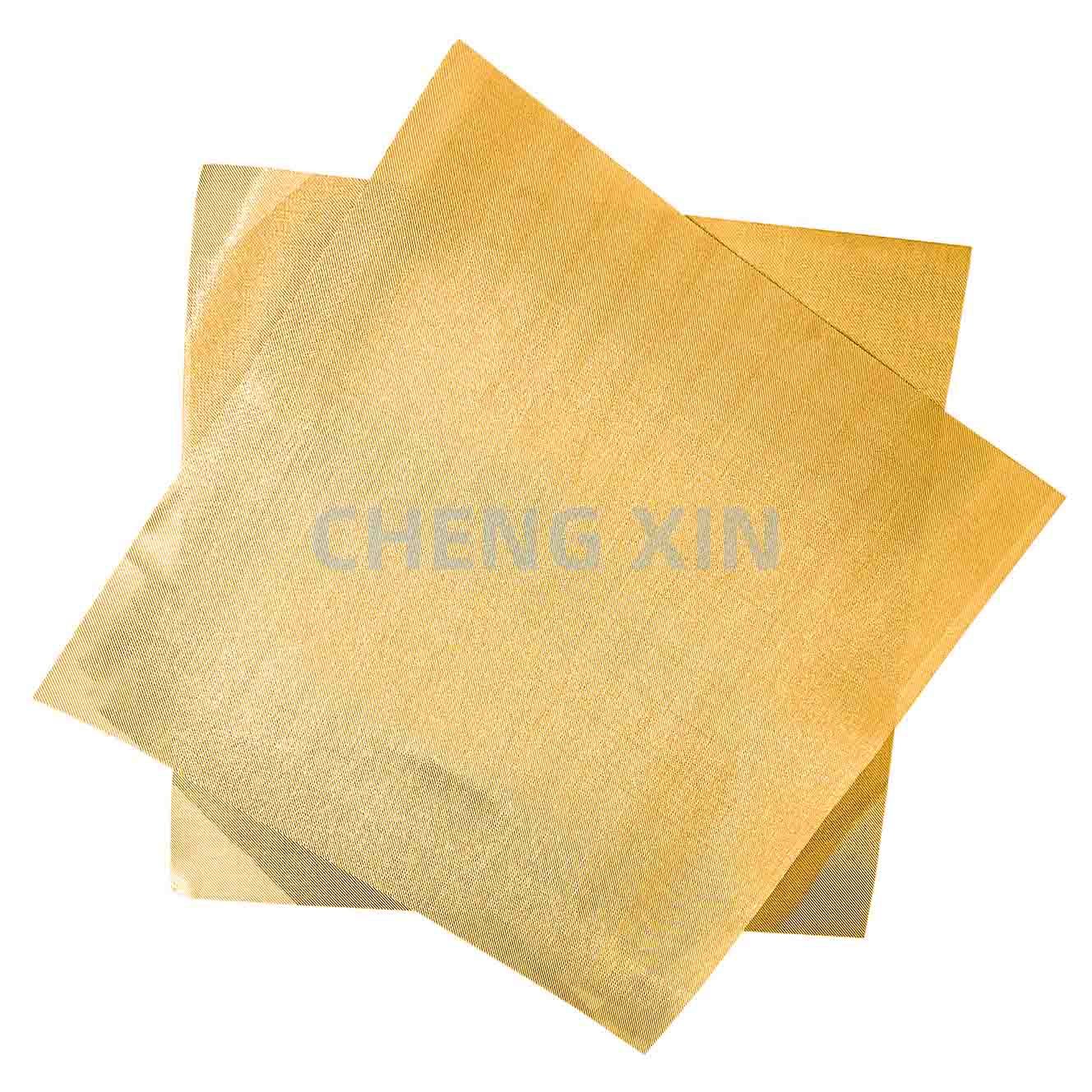

Industrial-Grade Brass Wire Mesh For Enhanced Functional And Decorative In Electronics And Heat Transfer

  • 1
  • 2
  • 3

Brand Name : Senphus

Certification : ISO9001

Place of Origin : China

Payment Terms : T/T,D/P

Supply Ability : 30 Tons per day

Delivery Time : 7 days

Packaging Details : inner kraft paper, outside plastic cloth, put into wooden pallet or case

Place or Orig : China

Material : Copper Wire

Woven style : Plain and Twill Weave

Mesh : 6-60mesh

Diameter : 0.7-0.05mm

Roll Width : 0.6-1.3mm

Roll Length : 10-100m

Usage : EMI/RFI Shielding and electrical products

Contact Now

Industrial-Grade Brass Wire Mesh For Enhanced Functional And Decorative Applications  In Electronics And Heat Transfer

Brass wire mesh is a versatile material made from woven or welded brass wires. Known for its excellent corrosion resistance, durability, and attractive golden appearance, it is widely used in various industries. Its applications include filtration, screening, decorative purposes, and electromagnetic shielding. The mesh offers good strength and flexibility, making it suitable for both industrial and architectural uses. Brass wire mesh also has antimicrobial properties, beneficial in medical and food processing settings. Available in different sizes and weave patterns, it can be customized to specific needs. Overall, brass wire mesh combines functionality with aesthetic appeal, making it a popular choice for projects requiring both performance and visual quality.



Industrial-Grade Brass Wire Mesh For Enhanced Functional And Decorative In Electronics And Heat Transfer

Technical data:

1 Technical requirements for weaved nickel mesh

    1.1 Technical requirements for nickel wire

         a. Chemical composition Nickel content >99.5%.

         b. Diameter tolerance of nickel wire ±0.005mm

         c. Nickel wire tensile strength >400Mpa, elongation >25%

    1.2 Mesh size and mesh uniformity of nickel mesh conform to GB/T 17492

    1.3 The allowable number of major defects of nickel mesh (holes, cracks, half weft, thin and dense channels, skip wire, loose weft/warp wire, warp loose channels) zero defect.

    1.4 The maximum deviation of the overall size of the mesh is ±0.5%

    1.5 The flatness of mesh is less than 5mm/2.5m


Dimensions and tolerance


Dimensions

≥0.03-0.1 ≥0.1-0.3 ≥0.3-0.6 ≥0.6-1.0 ≥1.0-3.0 ≥3.0-6.0
Tolerance ±0.002 ±0.002 ±0.005 ±0.007 ±0.008 ±0.02


Mechanical properties


Dimensions Condition Elongation(L0=100mm) Tensile strength (MPa)
0.03-0.1 M ≥20 ≥400
0.11-0.2 M ≥20 ≥400
0.21-0.48 M ≥30 ≥400


Brass Wire Mesh: Key Features

  • Corrosion Resistance – Brass resists rust and corrosion, ideal for outdoor and humid environments.
  • Durability – Strong and long-lasting, suitable for heavy-duty applications.
  • Attractive Appearance – Has a natural golden color that adds decorative appeal.
  • Flexibility – Can be easily shaped or formed without breaking.
  • Good Conductivity – Brass conducts heat and electricity well, useful in some technical applications.
  • Antimicrobial Properties – Helps reduce bacterial growth, useful in hygiene-sensitive settings.
  • Variety of Weaves and Sizes – Available in multiple mesh sizes and weave patterns for diverse uses.
  • Non-Magnetic – Does not interfere with magnetic fields, important for shielding.
  • Easy to Fabricate – Can be cut, welded, and molded with relative ease.



Brass Wire Mesh Applications

  • Filtration and Screening — Used in water, air, and oil filters to separate particles.
  • Decorative Design — Employed in architecture, interior design, and art for its golden appearance.
  • Security and Safety — Used in window screens and protective barriers due to its strength.
  • Electromagnetic Shielding — Blocks electromagnetic interference in electronic devices.
  • Food Industry — Used in food processing equipment because of its antimicrobial properties.
  • Medical Applications — Utilized in medical instruments and hospital environments for hygiene.
  • Jewelry and Crafts — Popular in making jewelry and handcrafted items due to its flexibility and shine.
  • Industrial Use — Serves as a component in machinery and equipment requiring durable mesh.


Woven Brass Wire Mesh Screen Specification

Mesh Wire Dia.(mm) Opening (mm)

SWG MM Inch
6 22 0.711 0.028 3.522
8 23 0.61 0.024 2.565
10 25 0.508 0.02 2.032
12 26 0.457 0.018 1.66
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.84
24 0 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.01 0.54
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.404
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60×50 36 0.193 0.0076
60×50 37 0.173 0.0068
60 37 0.173 0.0068 0.25
  • Hightop Metal Mesh manufactures two types of woven brass mesh screens:
  • Common brass – 65% copper and 35% zinc.
  • Red brass – 80% copper and 20% zinc
